PRVC isn’t a communist country in South East Asia…

Screen Shot 2012-12-30 at 11.19.30 AM

With the arrival of the flash new Oxylog 3000+ there’s been quite a bit of discussion around the base recently about modes ventilation.  There still seems to be quite a bit of confusion about Autoflow.  In my humble opinion, mechanical ventilation is rarely particularly well taught.  For most doctors, the only formal training on modes of ventilation is a hastily delivered tutorial from the flustered registrar during their first week as an ICU resident, perhaps with some random graphs scribbled on a napkin.  Hardly quality clinical education.  As a result ventilators continue to be scary machines for many docs.  There have been plenty of opportunities in the past to own the oxylog, and I don’t want to reinvent the wheel.  I think it’s worth reviewing autoflow though.

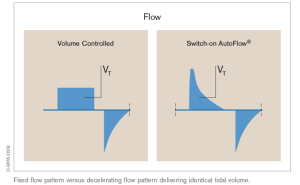

Autoflow is Drager’s method of delivering a mode of ventilation otherwise known as volume assured pressure control, or pressure regulated volume control (PRVC – Maquet’s version).  Essentially its a type of ventilation that seems like volume control, in that you dial up a tidal volume, but delivers a decelerating ramp pattern inspiratory flow, so behaves like pressure control.  So you get the simplicity of volume control with the benefits of pressure control.

Screen Shot 2012-12-30 at 11.23.42 AM

So how does it work?  Well let’s say you have a 70kg patient and you want to deliver 6mL/kg (as you always should…) so you dial up a Vt of 420mL.  The ventilator will deliver a standard volume control breath of 420mL using the minimum possible flow (for a RR of 20 and an I:E ratio of 1:2 that would be 1 second Insp time and therefore a flow of 25L/min) and measure the end insp pressure.  This pressure will then be used to deliver a pressure control breath as the next breath.  The Vt delivered by the pressure control breath will then be compared to the set Vt, and the insp pressure adjusted up or down by 3cmH2O pre breath until the desired Vt is consistently delivered.  This means that if there are dynamic changes in pulmonary compliance, the insp pressure will also change in order to deliver a constant Vt at the lowest possible Insp pressure.

Maquet’s PRVC is very similar, except that the first breath is PC, at an arbitrary Pressure, which is then adjusted over subsequent breaths to meet the set Vt.  This diagram from the Chinese University of Hong Kong’s excellent Basic Assessment and Support in Intensive Care (BASIC) course sums it up pretty well


One thing to note is the Autoflow/PRVC isn’t a mode of ventilation as such.  It’s just a way of delivering the breath.  You still select SIMV, CMV etc as the mode of ventilation.  Remember that in general you should only use CMV in curarised or very heavily sedated patients.

So why bother?  Well, pressure control ventilation limits peak airway pressure and thus avoids barotrauma which may help prevent ARDS.  It’s also beneficial in traumatic brain injury, as high airway pressures may be transmitted to the brain via increased venous pressure.  It may also improve oxygenation in patients with poor compliance or with lung units of differing compliance. Pressure control may also be more comfortable for less heavily sedated patients.

Sounds good, what’s the catch?  Well, while avoiding the main disadvantage of PCV – the inability to deliver a constant minute volume in the face of dynamic changes in pulmonary compliance – Autoflow will limit the volume delivered once the preset pressure limit is reached.  In fact it will cease inspiratory flow 5cmH20 before the pressure limit is reached.  The alarm “Vt low, pressure limit” will appear on the screen and the high priority alarm will sound.

I think Autoflow and it’s cousins are a good thing and together with low tidal volumes will be good for our patients, but like all new toys, we just have to have a play with them and get used to them.  Don’t just take it from me though, here are some great resources that explain Autoflow and mechanical ventilation in general.

Screen Shot 2012-12-30 at 11.26.06 AM

Drager Autoflow tutorial booklet

BASIC course PRVC tutorial


This entry was posted in General PH&RM. Bookmark the permalink.

6 Responses to PRVC isn’t a communist country in South East Asia…

  1. Sean Marshall says:

    Not a bad mode but I have one caution: if you have an air hungry spontaneously breathing vented pt on PRVC, the harder the pt tries to suck in for more air, the less ventilator support they will receive on the next breath.

  2. nfkb (@nfkb) says:

    Hi !

    I’m anesthesiologist/critical care MD in France. I also work for the EMS. Your explanation of autoflow and PCRV is really good.


    1) The most important thing is to avoid a high Pplat and with PC i’ve to forget a good monitoring of Pplat

    2) I’d like to see a study where PC is better for neurosurgical patients.

    3) Actually i do not understand what’s really better with this modes for our patients. Especially in pre hospital setting.

    4) Neither at the hospital, Drager Autoflow is just a trap. The work of breathing is increased when the patient triggers the ventilator. This “gadget” is against physiology. This is what Laurent Brochard and Jean-Christophe Richard teaches in Europe.

    For me, doctors really need to know pressure support ventilation and VAC. I teach resident to forget gadget like AUTOFLOW which are not good for patients in my opinion

    • expensivecare says:

      Thanks for your comment! I agree that it’s important to look at Pplat or at least Pmean and accept your point that while it makes physiological sense to use PRVC in neurosurgery, there probably isn’t any evidence to support it. Is PRVC/Autoflow better? Possibly not, but I think that the study in JAMA last year correlating even short term high Vt ventilation with risk of ARDS shows that what we do (even for a very short time) prehospital matters. Any ventilation mode that encourages lower plateau pressures without the extra monitoring required with PCV should be beneficial?

      Our ventilator defaults to autoflow when you switch it on. That’s probably the main reason we use it! but as you say, the most important thing is that the docs, nurses and paramedics using the ventilators know what they’re doing.


      • nfkb (@nfkb) says:

        Thank you for your answer.

        I totally agree with you that setting a low Vt is important. Even if the data is scarce i do a parallel in the OR when i set Vt around 7 ml/kg even for common surgery.

        But (sorry to insist 😉 ) i think that Autoflow is not useful for maintening a low Vt. And if the patient is not deeply sedated, the assisted cycle might be “more difficult” for the patient, so you lose the physiologic advantages that we imagine with autoflow (look @ )

        Hope to read soon other good articles about emergency medecine here 🙂


  3. Pingback: ‘Oxylog 3000 plus’ resources | Improving care in ED

  4. mjanderson972 says:

    “JAMA last year correlating even short term high Vt ventilation with risk of ARDS shows that what we do (even for a very short time) prehospital matters” — if the patient wants more than the set Vt on PRVC they can get it. PRVC doesn’t limit the Vt a pt receives – it only changes the pressure it takes to get there. I have seen soooooo many times on this mode a pt set at 400cc taking breathes in the 600cc range or higher. IMO, PRVC and similar modes (after training with them for the last 4.5y), make the life of the RT easier but don’t actually do what is ‘advertised’ unless the patient is deeply sedated or apneic.
