OXY’s LOG – ‘Between shock and a hard place…’

Cardiogenic shock – occurs in 10% of uncomplicated myocardial infarctions, suggests greater than 40% loss of functional left ventricule and has an 85% mortality.1, 2

John Hunter, a famous London surgeon during the 18th century, described his personal experience of myocardial infarction. His cardiac problems stemmed from an experiment where he inoculated himself with gonorrhoea. Unfortunately he unknowingly gave himself syphilis at the same time from the contaminated needle. He suffered his final infarction at work and went into cardiogenic shock secondary to a ruptured papillary muscle. Sadly balloon pumps and bypass machines hadn’t been invented and so he died in the corridors of St George’s Hospital, UK.3

Case: Our retrieval team was tasked to a rural hospital where a 60yr old was in cardiogenic shock with florid pulmonary oedema. The patient had already arrested five times despite full medical therapy and was now on double-strength adrenaline. The ED team had difficulties ventilating him and were struggling to improve his sats above 80%. The mission brief was to transfer the patient to a centre capable of revascularisation and/or supplementary balloon counter-pulsation.

The retrieval team reviewed the resuscitative and supportive treatment and assessed for potentially reversible causes. A bedside echocardiogram revealed a big floppy poorly contracting left ventricle. During transfer hypotension, hypoxia and acidosis eventually resulted in an unrecoverable arrest rhythm. It is believed that a further infarct, on the back of long standing cardiomyopathy, reduced the patient’s left ventricular muscle mass to a critical level and this ultimately lead to his demised.

Challenge: To understand the pathophysiology of cardiogenic shock and the treatments are available.

Pathophysiology: Cardiogenic shock can occur with any disease that inhibits the cardiac contractile mechanism.4

Cardiogenic shock is characterized by decreased cardiac output and evidence of tissue hypoxia. It is accompanied by decreased coronary perfusion pressure and increased myocardial oxygen demand.Pulmonary artery cathertization demonstrates; high CVP, high PAP, high peripheral resistance, low cardiac output and low mixed venous saturations.5 ,6

Ischaemia may be reversible, i.e. stunned or hibernating, and may even recover completely with restoration of myocardial blood flow.7 Although dysfunctional, damaged myocardium does maintain a latent capacity to contract and is responsive to positive inotropic stimulation.8

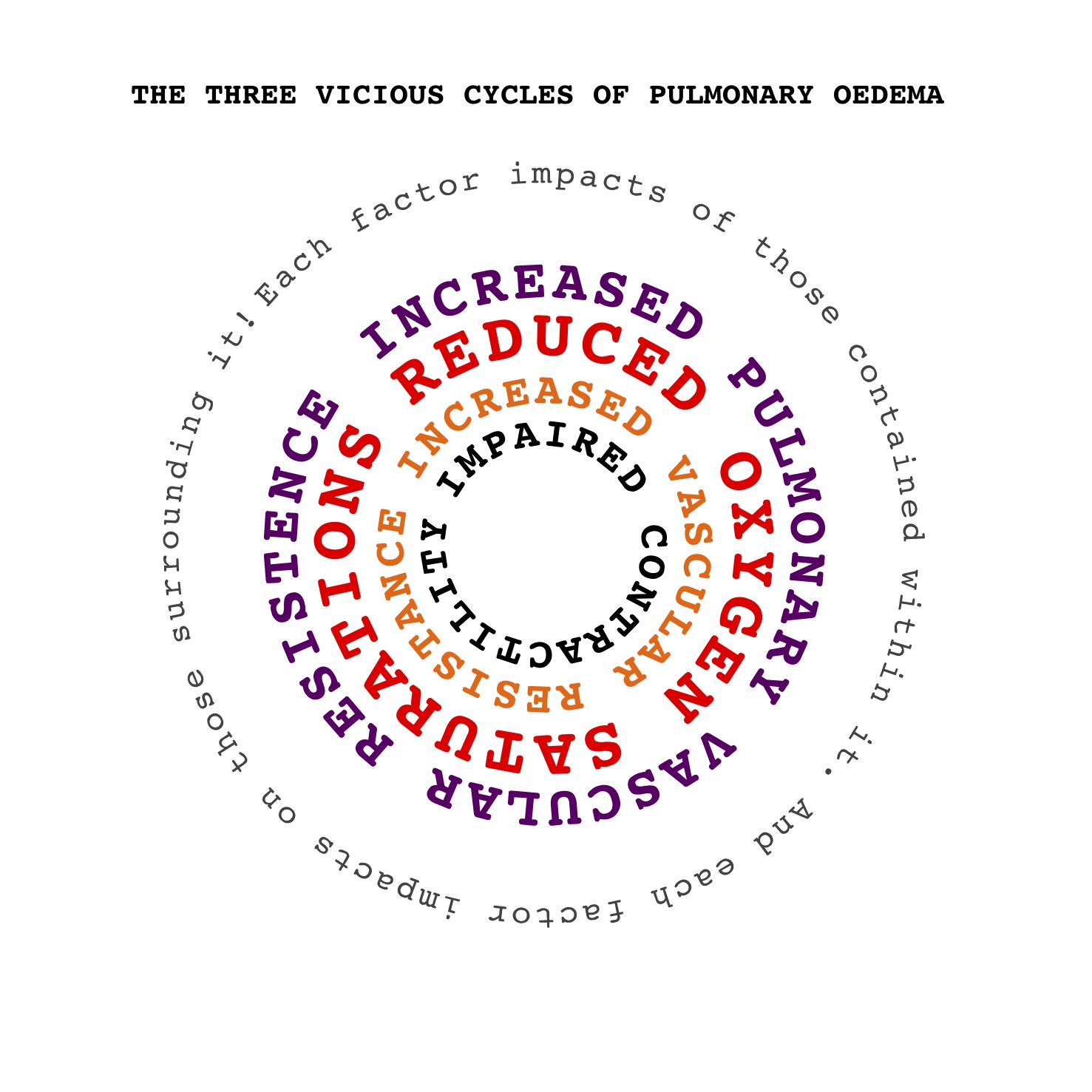

Pulmonary oedema and 3 vicious cycles:9 reduced myocardial contractility leads to impaired myocardial diastolic function and increased left ventricular filling pressure. This increased pressure is transferred backwards to the pulmonary veins leading to pulmonary oedema.10

Treatment: Initiate resuscitative and supportive efforts while implementing diagnostic evaluation. Hospitals without facilities for angioplasty, surgical intervention or capacity to place a balloon pump should make a rapid decision about transfer during the initial resuscitation phase.

Therapeutic goals are aimed at optimizing myocardial oxygenation and improving peripheral tissue perfusion.

Improve myocardial oxygenation

  • Reduce myocardial oxygen demand – decrease afterload and HR.
  • Increase coronary perfusion
    • Adequate flow – revascularisation, e.g. thrombolytics, CABG, angioplasty, stenting.
    • Adequate pressure – MAP 60-80mmHg, e.g. inotropes, balloon pump.

Improve tissue perfusion

  • Pre-load optimisation – intravascular volume increase (until PAP 18mmHg).
  • Contractility – inotropic agents generally increase myocardial oxygen requirements by their chronotropic rather than inotropic action. Aim is to use that which causes the least increase in HR.
  • Afterload optimisation – use vasodilators. Balloon pump may be effective if MAP low.
(Optimising pre-load and afterload can increase peripheral perfusion without increasing myocardial oxygenation requirements or reducing coronary blood flow. Agents that increase myocardial contractility do increase peripheral tissue perfusion but also increase myocardial oxygen requirements).11, 12

Intra-aortic balloon pump (IABP): Improves coronary perfusion during diastole and reduces afterload during systole, thereby augmenting cardiac output and coronary blood flow. Myocardial oxygen demand is decreased by the increase in left ventricular stroke volume and reduction in PAP.

Indictations: (Bridging measure until…)

  • Mechanical defect can be corrected.
  • Prior to revascularisation.
  • In reversible cardiogenic shock, e.g. from drugs.13 14

Of note: NSW-HEMS have a helo-compatible balloon pump. This enables balloon pump transfers by helicopter but also initiation of treatment at a ‘referring’ hospital when indicated.15

Summary: Confirm the diagnosis of cardiogenic shock during the initial resuscitation phase. Rule out mechanical defects (with US) and correct any reversible conditions. Optimise pre-load, contractility and afterload; by correction of hypovolaemia (especially if right ventricle affected), use of vasodilators (where tolerated) and commencing inotropes (taking care to limit any detrimental increase in heart rate). Decide early if transfer is required to offer revascularisation, surgical intervention or access to balloon counter-pulsation.


1. Krone, R.J., Geha, A.S., Avioli, L.V., 1976. Surgical correction of cardiogenic shock. Arch Int Med;136:1186-1192.

2. Greenberg, M.A., Menegus, M.A., 1989. Ischemia-induced diastolic dysfunction: new observations, new questions. J Am Coll Cardiol;13:1071-1072.

3. http://www.rcseng.ac.uk/museums/history/johnhunter.html/

4. Califf, R.M., Bengtson, J.R., 1994. Cardiogenic shock. N Engl J Med;330:1724-1730.

5. Forrester, J.S., Diamond, G., Chatterjee, K., et al. 1976. Medical therapy of acute myocardial infarction by application of hemodynamic subsets (first of two parts). N Engl J Med;295:1356-1362.

6. Forrester, J.S., Diamond, G., Chatterjee, K., et al. 1976. Medical therapy of acute myocardial infarction by application of hemodynamic subsets (second of two parts). N Engl J Med;295:1404-1413.

7. Hollenberg, S.M., Kavinsky, C.J., Parrillo, J.E. 1999. Cardiogenic shock. Ann Intern Med;131:47-59.

8. Patel B, Kloner RA, Przyklenk K. 1988. Post-ischemic myocardial “stunning” a clinically relevant problem. Ann Intern Med;108:626-628.

9. Kasper, D. L., E. Braunwald, et al. 2005. Harrison’s principles of internal medicine, McGraw-Hill.

10. Gandhi, S.K., Powers, J.C., Nomier, A.M., et al. 2001. The pathogenesis of acute pulmonary edema associated with hypertension. N Engl J Med, 344:17–22.

11. Vatner, S.F., Baig, H., 1979. Importance of heart rate in determining the effects of sympathomimetic amines on regional myocardial function and blood flow in conscious dogs with acute myocardial ischemia. Circ Res;45:793-806.

12. Rude, R.E., Izquierdo, C., Buja, L.M., et al. 1982. Effects of inotropic and chronotropic stimuli on acute myocardial ischemic injury. I. Studies with dobutamine in the anesthetized dog. Circulation; 65:1321-1328.

13. Hendry, P.J., Masters, R.G., Mussivand, T.V., et al. 1999. Circulatory support for cardiogenic shock due to acute myocardial infarction: A Canadian experience. Can J Cardiol;15:1090-1094.

14. Freedberg, R.S., Friedman, G.R., Palu, R.N., Feit, F. 1987. Cardiogenic shock due to antihistamine overdose. reversal with intra-aortic balloon counterpulsation. JAMA;257:660-661.

15. Burns, B., Habig, K., Reid, C., 2012. Review of Intra-aortic balloon pump in medical retrieval. Eur J Emerg Med (in press).

“non omnis moriar”


This entry was posted in Cases, Interhospital and tagged . Bookmark the permalink.
